ROYAL RANGE HAY BARNS

The Royal range is manufactured to the same high standard as our Prime range, but with the addition of our most popular extras, including: matching black ridge, hook and band hinges (if doors are added) and gable end vents.

As well as our standard hay barns, we can manufacture to your specific requirements. Please send us a sketch or call us on 01403 823 836 to discuss this. All of our hay barns can be installed as stand alone, free-standing buildings or incorporated within your new stable block.

View Specifications

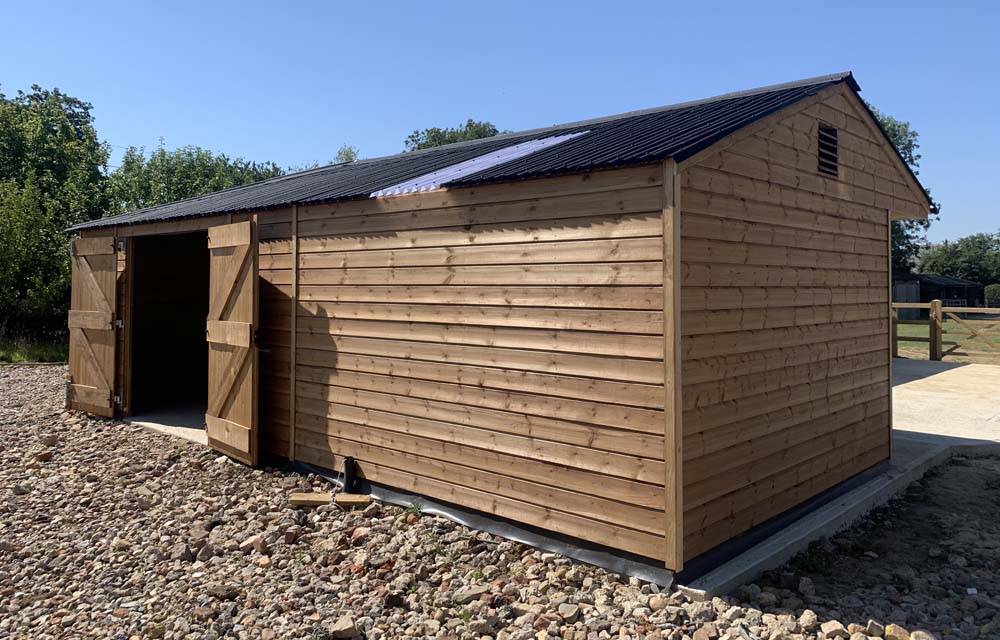

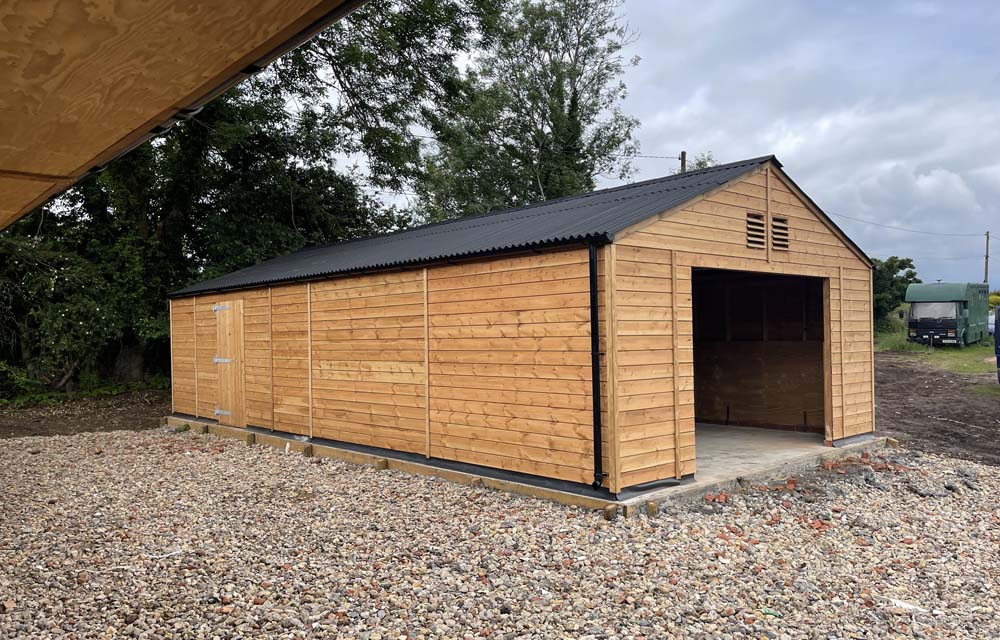

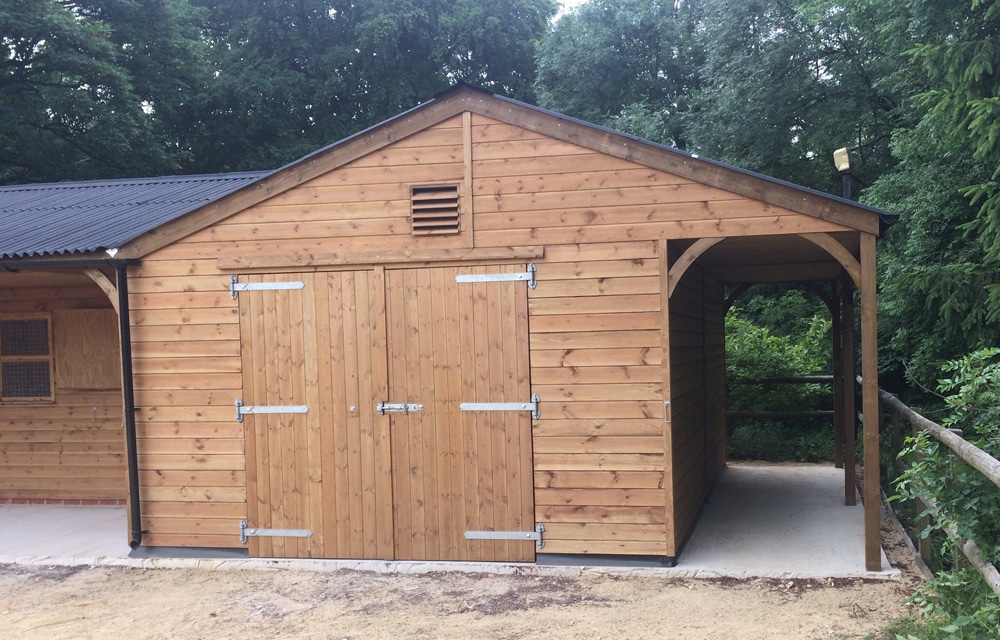

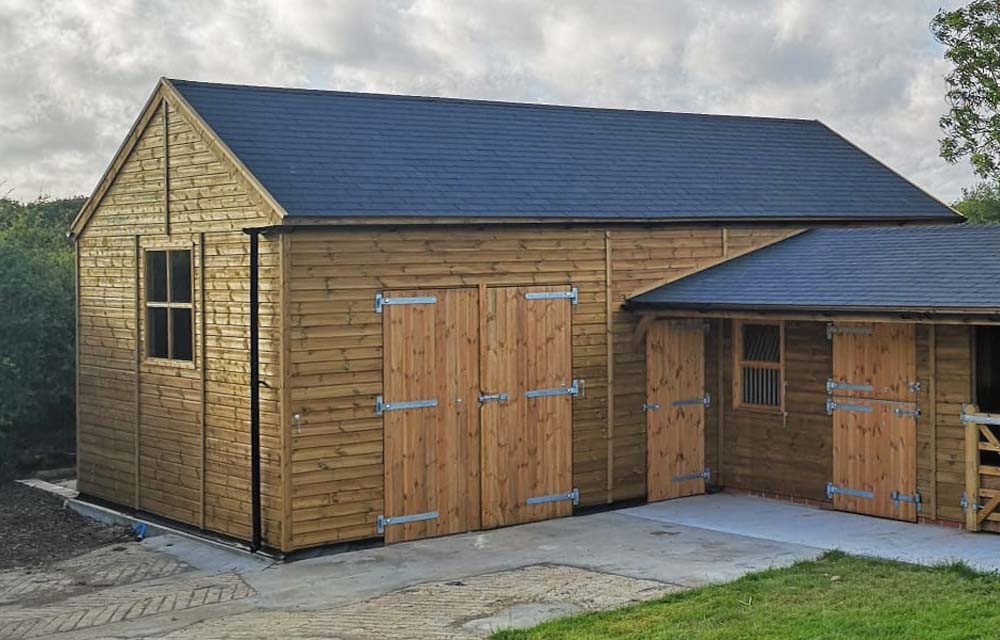

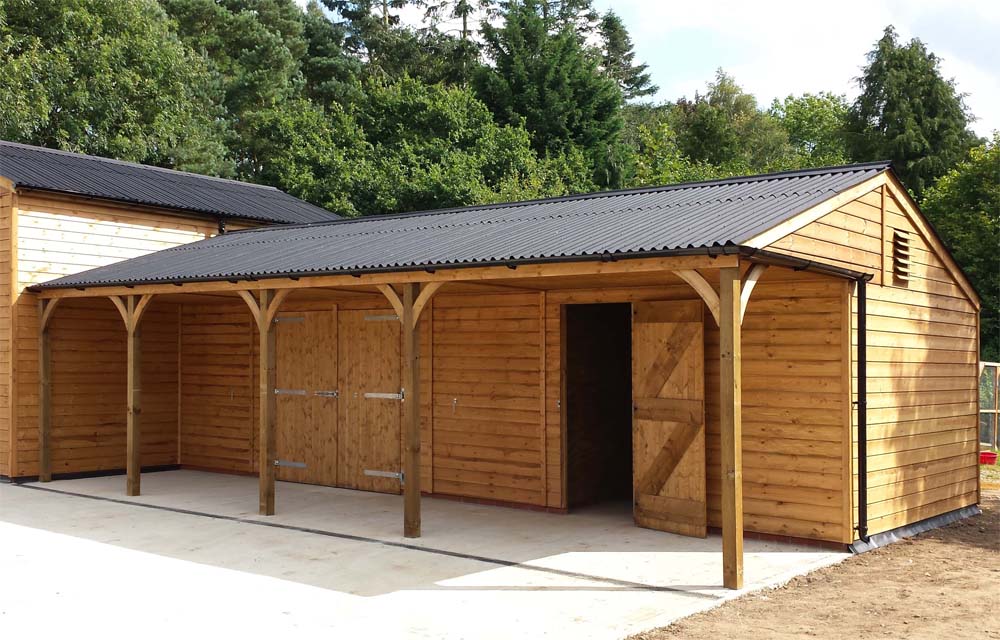

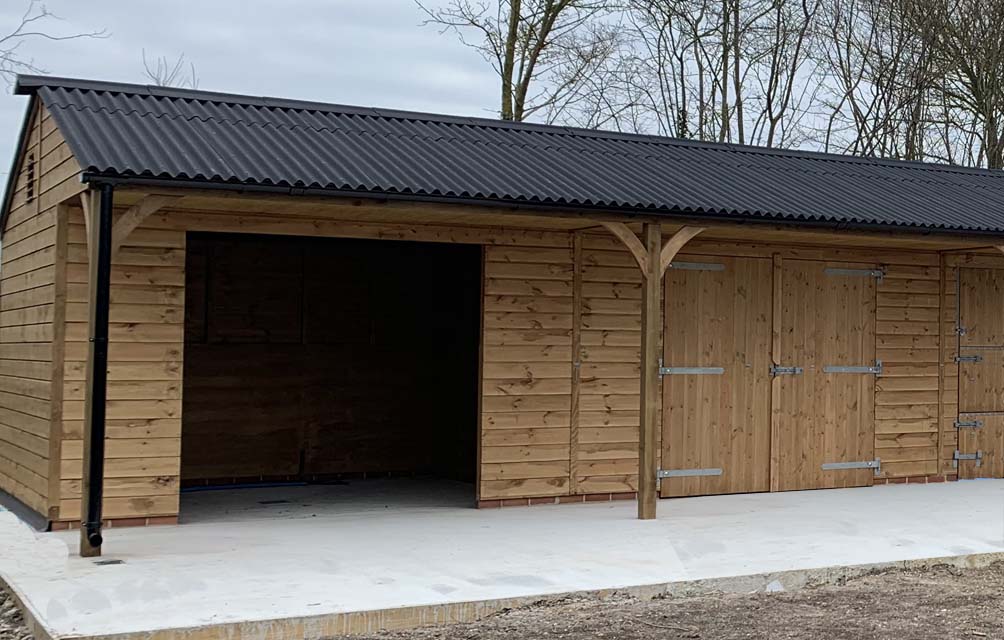

A Selection Of Our Royal Range Hay Barns

Prime Range Hay Barns Specifications

Shiplap Cladding

Top grade redwood shiplap cladding 16mm x 150mm, fixed with 50mm sheradised ring shank nails.

Framework

The frameworks are manufactured with kiln dried timber, 47mm x 75mm. All timber is regularised and strength graded for structural use to C16-C24.

Wall Lining

Interior walls are unlined as standard, but various lining options are available.  Please call us on 01403 823 836 for more information.

Roof

Black Onduline roof with galvanised ridge.    Also available in green, brown or red.  Standard roof pitch is 15 degrees.  Purlins 100mm x 47mm and 100mm x 100mm.  Fitted to Onduline specification.

Doors (Optional Extra)

Manufactured from 125mm x 25mm tongue, groove and v-jointed timber, ledged and braced.  Double doors are furnished externally with 1 x 225mm brenton bolt, 2 x 150mm cabin hook and 3 pairs of 600mm heavy duty tee hinges.  Fitted internally with spring bolt and drop bolt.

Guttering

100mm half round black guttering with 50mm round downpipes are fitted as standard to both sides.

Preservative

Buildings are treated with an environmentally friendly preservative product to a golden brown finish before leaving our workshop.

Other Details

All buildings are 2.2m to the eaves.  Ridge heights very between 2.8m and 3.3m depending on building size.
