PRIME RANGE HAY BARNS

The Prime Range has been designed to provide you with high quality, value for money hay barns.  A robust range of buildings that includes all of the features and benefits you would expect your new hay barn to have.   Our Prime Range is the range we have supplied from the start, of course as with anything, there have been changes and improvements made along the way, but it still remains our most popular range.

As well as our standard range of hay barns, we can manufacture to your specific requirements.  So, if you have a design in mind, please send us a sketch or call us on 01403 823 836 to discuss your requirements. All of our hay barns can be installed as stand-alone, free-standing buildings or incorporated with other buildings.

Prime Range Hay Barns
  • Felt Shingle Roof View
  • Corner Haybarn View
  • Small Hay Barn View
  • Hay Barn & Store View
  • Freestanding Hay Barn View

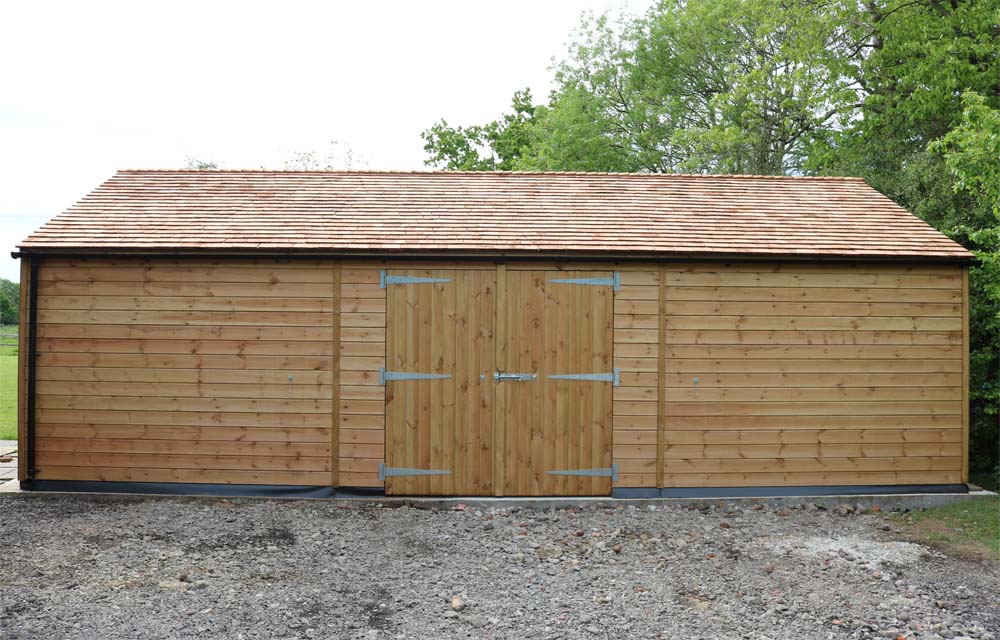

  • Hay Barn - Cedar Shingle Roof View



Prime Range Hay Barns Specifications

Shiplap Cladding

Top grade redwood shiplap cladding 16mm x 150mm, fixed with 50mm sheradised ring shank nails.

Framework

The frameworks are manufactured with kiln dried timber, 47mm x 75mm. All timber is regularised and strength graded for structural use to C16-C24.

Wall Lining

Interior walls are unlined as standard, but various lining options are available.  Please call us on 01403 823 836 for more information.

Roof

Black Onduline roof with galvanised ridge.    Also available in green, brown or red.  Standard roof pitch is 15 degrees.  Purlins 100mm x 47mm and 100mm x 100mm.  Fitted to Onduline specification.

Doors (Optional Extra)

Manufactured from 125mm x 25mm tongue, groove and v-jointed timber, ledged and braced.  Double doors are furnished externally with 1 x 225mm brenton bolt, 2 x 150mm cabin hook and 3 pairs of 600mm heavy duty tee hinges.  Fitted internally with spring bolt and drop bolt.

Guttering

100mm half round black guttering with 50mm round downpipes are fitted as standard to both sides.

Preservative

Buildings are treated with an environmentally friendly preservative product to a golden brown finish before leaving our workshop.

Other Details

All buildings are 2.2m to the eaves.  Ridge heights very between 2.8m and 3.3m depending on building size.
