This range of mobile stables are built on a steel towing frame and are available in sizes from 3m wide to 10.8m wide.

Have a look at the selection below, but please let us know if you cannot find what you are looking for.

Steel Towing Frame
  • The Mobile Stable Yard View

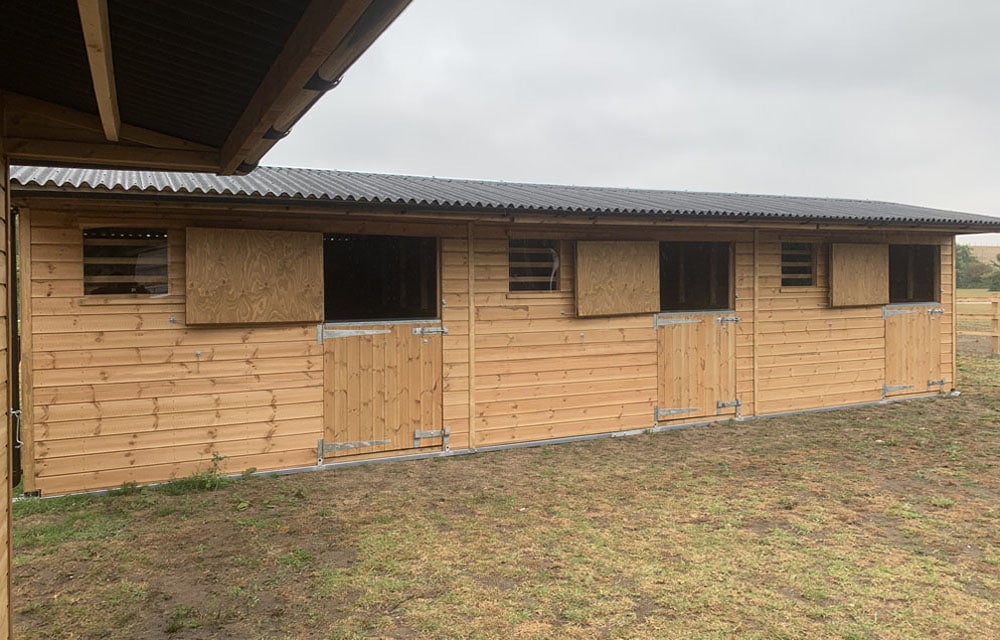

  • Group of Mobile Stables View
  • Double Mobile Stables View
  • Single Mobile Stable View
  • Triple Mobile Stables View

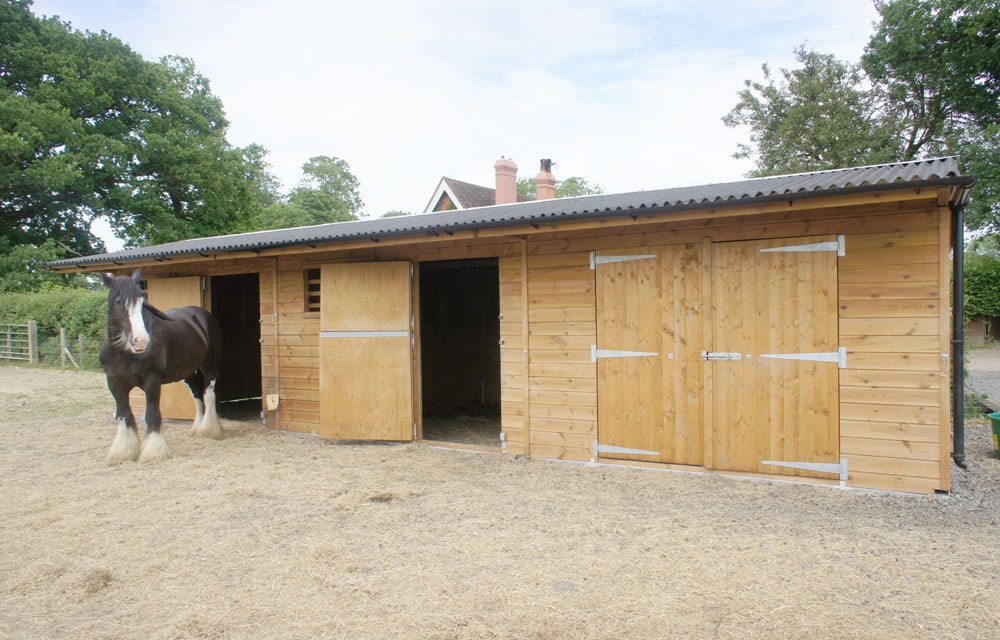

  • Mobile Stable & Field Shelter View



Mobile Stable Specification (Steel Towing Frame)

Shiplap Cladding

Top grade redwood shiplap cladding 16mm x 150mm, fixed with 50mm sheradised ring shank nails.

Framework

The frameworks are manufactured with kiln dried timber, 47mm x 75mm. All timber is regularised and strength graded for structural use to C16-C24.

Kickboarding

All stables are kickboarded as standard to a height of 1.2m high with exterior grade 12mm WISA Spruce plywood – multiple 5 layered, for structural integrity.

Roof

Black Onduline roof with galvanised ridge.  Also available in green, brown or red.  Standard roof pitch is 15 degrees.  Purlins 100mm x 47mm, 125mm x 47mm, 100mm x 100mm.  Fitted to Onduline specification.

Doors

Doors are manufactured from 125mm x 25mm tongue, groove and v-jointed timber, ledged and braced.  Both top and bottom doors are lined with exterior grade plywood to give an overall thickness of 50mm.  Stable door size 1.1m wide x 2.1 high.  Top door 0.8m high. Bottom door height 1.3m.  Bottom doors are furnished with 1 x strong anti-chew strip, 1 x heavy duty kick-over latch and 1 x 225mm brenton bolt, 1 x 150mm cabin hook and 1 pair of 600mm heavy duty tee hinges.  Top doors have 1 x 100mm oval pad bolt, 1 x 150mm cabin hook, 1 pair of 600mm heavy duty tee hinges.

Guttering

100mm half round black guttering with 50mm round downpipes are fitted as standard to the front of all buildings.  Back guttering is available.

Towing Frame

Steel towing frame 100mm x 50mm box shape.  Towing points at both ends, includes heavy duty chain.

Preservative

Buildings are treated with an animal friendly preservative product to a golden brown finish before leaving our workshop.

Other Details

All buildings are 2.2m to the eaves and approximately 2.9m to the ridge.  Overhang at 0.9m deep, supplied unlined (if applicable).  All internal roof trusses are open to aid ventilation except when sited next to a tack/feed room. In this instance they are fully boarded to ensure security is maintained.  Tack rooms are lined to eaves with exterior grade 9mm Spruce plywood.
